MTC06-2516 Advertising Graphics Automatic Cutting Plotter High-Speed CNC Cutting Machine Custom

Home / Products / Advertising Graphics Cutting Machine / MTC06-2516 Advertising Graphics Automatic Cutting Plotter High-Speed CNC Cutting Machine

MTC06-2516 Advertising Graphics Automatic Cutting Plotter High-Speed CNC Cutting Machine

One-time molding integral frame, super stable body, fully cope with the use of high-intensity machine cutting materials, while having a continuous feeding system and safety anti-collision system to adapt to the flatbed digital automatic cutting machine for advertising panels.
GET IN TOUCH

Adaptation Tools:

  • V-cut
     KNOW MORE
  • High speed oscillating tool
     KNOW MORE
  • Kiss-cut tool
     KNOW MORE
  • Foam cutting tool
     KNOW MORE
  • Universal cutting tool
     KNOW MORE
  • Gray card slotting tool
     KNOW MORE
  • Pneumatic oscillating tool
     KNOW MORE
  • Creasing wheel
     KNOW MORE
  • Driving rotary tool
     KNOW MORE
  • Dotted creasing wheel
     KNOW MORE
  • Milling tool
     KNOW MORE
  • Gear rotary tool
     KNOW MORE

Product Application

Leather Corrugated board Gift box Mobile phone films

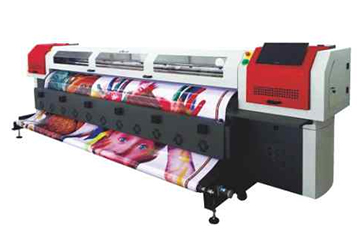

Reflective materials Bubble word Photo printing Flag material

Product Parameter

Air Pump Power

7.5KW

7.5KW

9KW

Fixed Power

9.5KW

9.5KW

11KW

Effective Cutting Area

2500*1300mm

2500*1600mm

3000*2000mm

Overall Size

3900*2285*1350mm

3900*2585*1350mm

4400*2985*1350mm

Cutting Speed

300-1800mm/s (according to different materials)

Cutting Thickness

≤ 50MM (according to different materials)

Working Environment

Temperature: 0° -35° Humidity: 35%-80%

Transmission System

High-end servo motor drive, imported linear guides, bearings

Working Voltage/Power

AC 380V/220V±10%50HZ

File System

Compatible with HPGL/PLT/DXF etc. Repeat accuracy ≤ 0.01mm Software resolution 0.025

Working Characteristics

Can be connected to any CAD software, computer-aided design and cutting can be carried out at the same time

Buffer Capacity

One-time quick transfer sheet-fed cutting

Transmission Port

Standard network port

Fixed Method

Vacuum adsorption

Operation Interface

Touch Screen

Feeding Method

Imported crawler automatic feeding method (can be cut in unlimited length)

Standard Tools

High-speed oscillating tool, universal cutting tool, kiss-cut tool, CCD automatic positioning system, cursor

Optional Tools

Pen, V-CUT, creasing wheel, milling tool set, 50MM foam cut tool

Cutting Material

All kinds of corrugated cardboard, Yellow cardboard, Red cardboard, PVC board, Honeycomb board, PVC

foam board, Acrylic, KT board, Aluminum- plastic board, Fiber midsole and rubber board, Thick foam, Car

sticker, adhesive, Reflective film, Photo paper, Photo PVC, etc.

Product Description

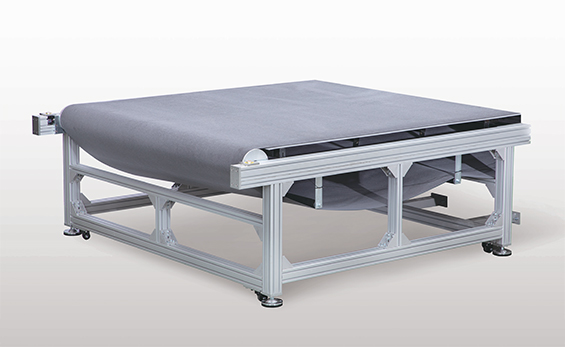

EXTENDED PICKING AREA*
It can be equipped with an extended material
collecting area to allow cutting and receiving to
be carried out at the same time, saving sorting time.
SORTING INDICATION FUNCTION*
It is convenient for the collection and sorting of
mixed multi order cutting, saving materials,
small orders, and higher efficiency.
*: indicates that the configuration part can be added optionally
ONE-PIECE MOLDED FRAME
The one-time processing and molding of the frame greatly improves the stability of the fuselage, greatly reduces the possibility of the machine losing the accuracy of the guide rail due to vibration, and the high-strength material makes the service life of the machine longer.

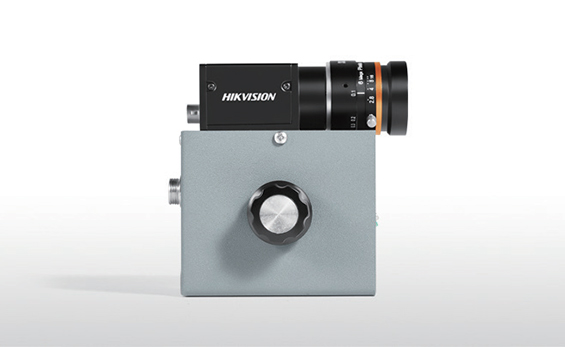

CCD SMART POSITIONING SYSTEM
A high-definition CCD positioning camera imported from Germany is built into the machine, which can automatically complete accurate edge patrol cutting
when dealing with various materials. With the real-time image analysis of the software system, the probability of error can be greatly reduced and the perfect cutting effffect can be achieved.
QR CODE EXTRACTING AUTOMATICALLY
By automatically scanning a QR code or bar code,
the machine will quickly read the cutting file
and perform the cutting automatically.

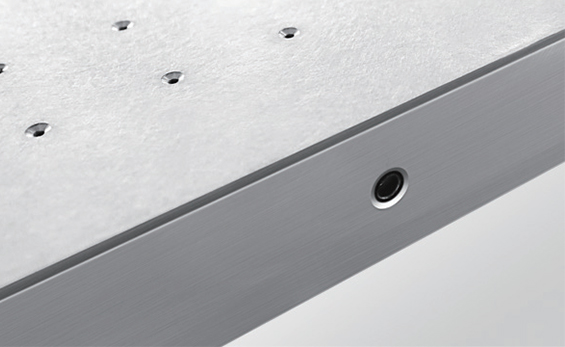

HONEYCOMB-AL VAC-SORB PLATFORM
Using aviation-grade aluminum alloy materials,
high-quality honeycomb aluminum plates create
a vacuum adsorption platform that is not easy to deform,
and a unique multi-contact design is convenient for adjustment.

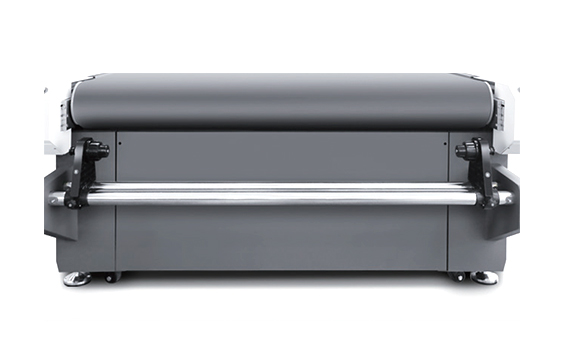

CONTINUOUS FEEDING SYSTEM
Equipped with a continuous feeding system for
cutting wireless length coils and automatically
corrects the offset during feeding to achieve zero cutting error.

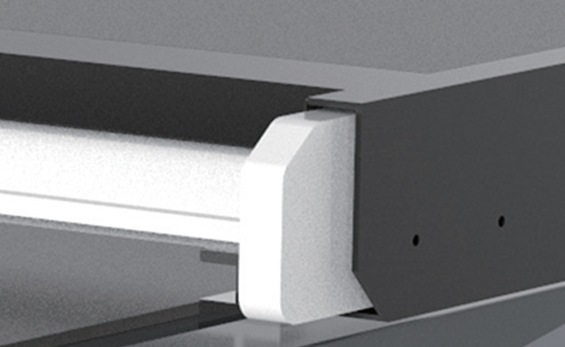

SAFETY ANTI-COLLISION SYSTEM
High sensitivity intelligent anti-collision
system to ensure safe operation.

Product Parameters

Industry application
RUK advertising cutting machine RJMTC06II series with precise CCD positioning cutting function, which allows you to easily position whatever material you cut , and can finish cutting the Bubble word, Reflective materials, Mobile phone films, Gift box , flag material and other different materials to maximize the production efficiency and save labor.

RJMTC06II Technical Parameters

Mode

RJMTC06-1815

RJMTC06-2516

RJMTC06-3021

Effective Cutting Area(mm)

1800mm*1500mm

2500mm*1600mm

3000mm*2100mm

Operation Properties

Work with computer synchronously for quick data transmission,multi-page file in one time

Cutting Speed

300-1200mm/s

Cutting Thickness

≤50MM

Cutting Materials

Various corrugated board, yellow cardboard, red cardboard, PVC board, honeycomb board, PVC foaming board. acrylic, KT board, aluminum plastic board, fibre bottom board and rubber sheet, thick foam etc.

Standard Tools

Pen, Cursor, Oscillating tool, Kiss Cut Tool, Universal Cutting Tool, CCD positioning system

Option

High speed water-cooled milling tool, V-Cut tool, Foam Cut Tool, Creasing Wheel

Fixing Method

Vacuum System (with counter-blower

Repeat Precision

≤0.01mm

Software Resolution

0.025

Interface

Ethernet Port

Buffer Memory

Fast transmission for multi-page large file

Command Mode

HPGL Compatible format

Control Panel

7 inch Color Touch Screen

Driving System

Import Servo Motor、Straight rail

Voltage /Power

AC 220V/380V±10%  50HZ

Pump Powe

5.5KW

7.5KW

9KW

Total Fixed Powe

9.5KW

Working Environment

Temp: 0℃~35℃   Humidity:35%～80%

Product Drawing

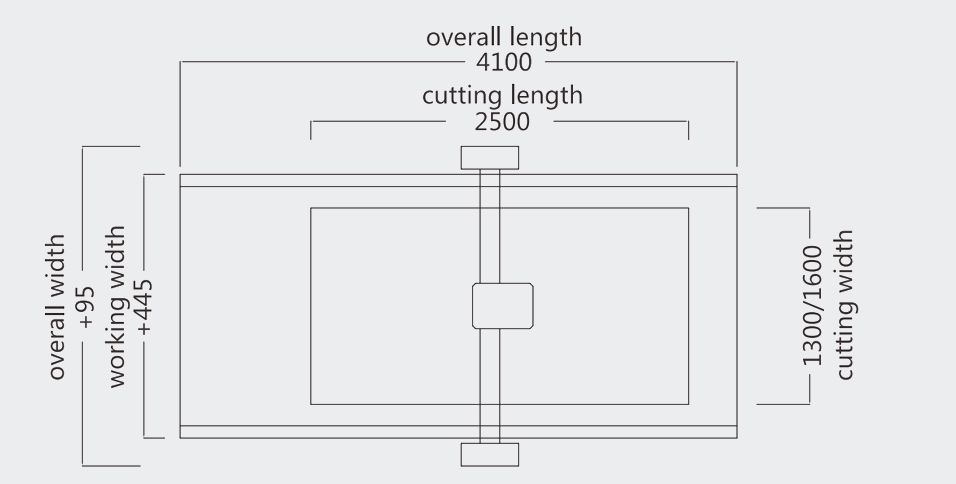

Outline dimensional drawing:

Technical parameters
Cutting width 1300/1600 mm
Cutting length 2500 mm
