MTC09-2516 Fully Automatic Positioning CNC Flatbed Digital Die Cutting Machine

Accurate CCD positioning cutting function, in the advertising industry can complete the cutting of different materials, including corrugated cardboard, kt board, pvc board, acrylic board, etc., as a cutting machine to maximize the production efficiency.

GET IN TOUCH

Product Application


Bus sticker	Market advertising	UV flatbed	AD word

Gasket	Window advertising	UV coil	Wedding celebration

Product Parameter

Air Pump Power	7.5KW	7.5KW	7.5KW
Fixed Power	9.5KW	9.5KW	9.5KW
Effective Cutting Area	2500*1300mm	2500*1600mm	3000*2000mm
Overall Size	390022851350mm	390025851350mm	440029851350mm
Cutting Speed	300-1800mm/s(according to diﬀerent materials)
Cutting Thickness	≤ 50MM (according to diﬀerent materials)
Working Environment	Temperature: 0° -35° Humidity: 35%-80%
Transmission System	Imported servo motor drive, linear guide, precision ball screw, bearing
Working Voltage/Power	AC 380V/220V±10%50HZ
File System	Compatible with HPGL/PLT/DXF etc. Repeat accuracy ≤ 0.01mm Software resolution 0.025
Working Characteristics	Can be connected to any CAD software, computer-aided design and cutting can be carried out at the same time
Buffer Capacity	One-time quick transfer sheet-fed cutting
Transmission Port	Standard network port
Fixed Method	Vacuum adsorption
Operation Interface	Seven-inch color multi-language touch screen
Feeding Method	Imported crawler automatic feeding method (can be cut in unlimited length)
Standard Tools	High-speed oscillating tool, universal cutting tool, kiss-cut tool, CCD automatic positioning system, cursor
Optional Tools	Pen, V-CUT, creasing wheel, milling tool set, 50MM foam cut tool
Cutting Material	All kinds of corrugated cardboard, Yellow cardboard, Ted cardboard, PVC board, Honeycomb board, PVC foam board, Acrylic, KT board, Aluminum- plastic board, Fiber mid-sole plate, Rubber board, Thick foam material, etc.

Product Description

AUTOMATIC TOOL DEPTH RECOGNITION A set of precision instrument sensing system is also designed under the adsorption platform. When the tool tip reaches the sensing area, the machine will receive a signal to obtain the depth of the tool tip.
	SAFETY ANTI-COLLISION SYSTEM Equipped with a safety device based on infrared sensors to ensure the safety of operators while the machine is running at high speeds.
INTELLIGENT PARTITION SUCTION STRUCTURE Only turn on the suction function in the working area, save energy consumption, and achieve the maximum suction effect with the least amount of electricity.

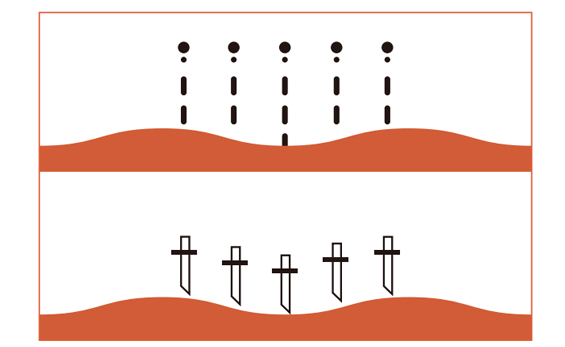

	FLATNESS ADAPTIVE TOOL DEPTH FUNCTION Adaptive knife depth according to platform flatness, software corrects the plane in real time to ensure highquality cutting results.

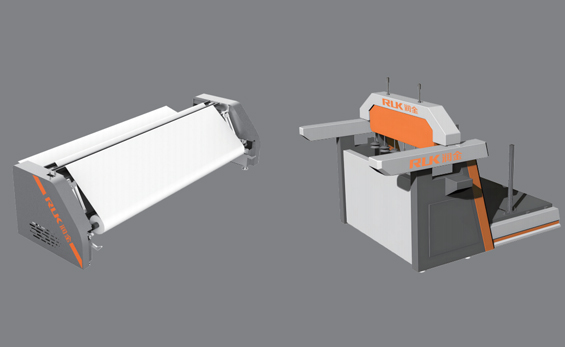

AUTOMATIC FEEDING SYSTEM According to actual needs, it can be equipped with two automatic feeding systems, coil and plate, to achieve continuous cutting.
	AUTOMATIC FEEDING SYSTEM* According to actual needs, it can be equipped with two automatic feeding systems,coil and plate, to achieve continuous cutting. *: indicates that the configuration part can be added optionally
IMPORTED FELT Use wool felt imported from Italy, which is more durable.

Product Parameters

Industry application

RUK advertising cutting machine RJMTC09 series with precise. CCD positioning cutting function, which Allows you to easily position whatever material you cut, and can finish cutting the car stickers, Self Adhesive, PVC, KT board and acrylic and other different materials to maximize production efficiency and save labor.

RJMTC09 Technical Parameters
Mode	RJMTC09-2513	RJMTC09-2516
Effective Cutting Area(mm)	2500mm*1300mm	2500mm*1600mm(as customer request)
Multi-function Head	Multi-station head can be freely replaced with different tool heads, with routing, Vibration cutting half-cutting, Creasing line, drawing, CCD industrial camera's positioning and driving rotary tool cutting
Operation Properties	Work with computer synchronously for quick data transmission,multi-page files in one time
Cutting Speed	300-1600mm/s( Depend on different materials)
Cutting Thickness	≤50MM( Depend on different materials).
Cutting Materials	All kinds of pictorial cloth, mesh cloth, flags, back glue, car stickers, PP synthetic paper, corrugated cardboard, red cardboard, PVC, honeycomb board, PVC foam board, acrylic, KT board, aluminum-plastic plate, fiberboard and rubber sheet, thick foam, knitted fabric, woven fabric
Standard Tools	Pen, Cursor, Oscillating tool, Kiss cut tool, Universal cutting tool, CCD automatic positioning system
Option	High speed water-cooled milling tool, V-CUT(45°,30°,22.5°,15°,0°for option),Foam cut tool,Creasing wheel
Fixing Method	Vacuum System
Feeding Method	Automatic feeding mode of imported crawler (unlimited length cutting)
Repeat Precision	≤0.01mm
Software Resolution	0.025
Interface	Ethernet port
Buffer Memory	Fast transmission for multi-page large file
Command Mode	HPGL compatible format
Format Compatible	AI, Auto CAD, CDR, etc.
Control Panel	7 inch color touch screen
Driving System	Imported servo motor, high precision linear guide, precision ball screw
Safety Device	Adont infrared sensor, safe and reliable
Voltage / Power	AC 220V/380V+10% 50HZ
Pump Power	75KW
Total Fixed Power	9.5KW
Working Environment	Temp:0°C~35°CHumidity:35%~80%

Product Drawing

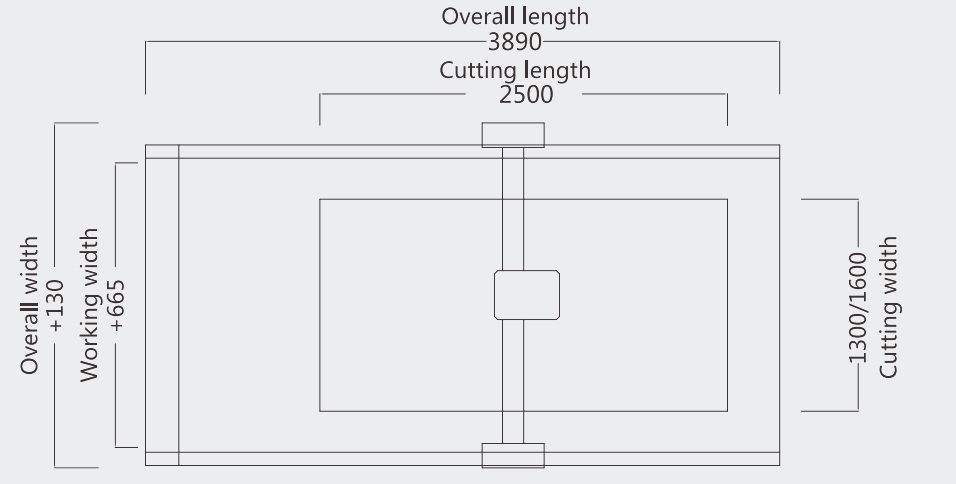

Outline dimensional drawing:

Technical parameters
Cutting width	1300/1600 mm
Cutting length	2500 mm
