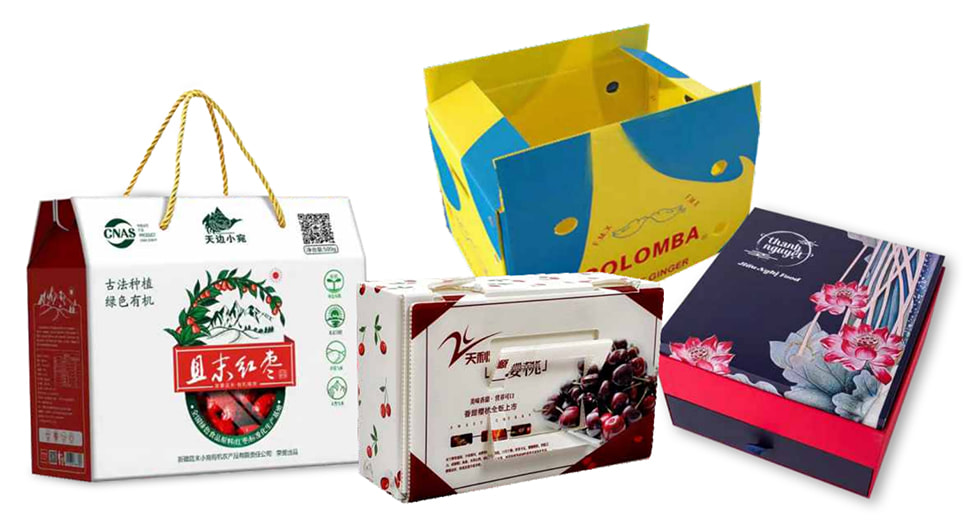

Applied in corrugated boxes, cartons, color boxes, gift boxes, recycling packaging, and other products proofing and small batch production.
.
●The double-group machine head can be replaced at will, and can be installed up to 8 groups at most. The machine heads with different functions can be easily replaced and added according to actual work needs

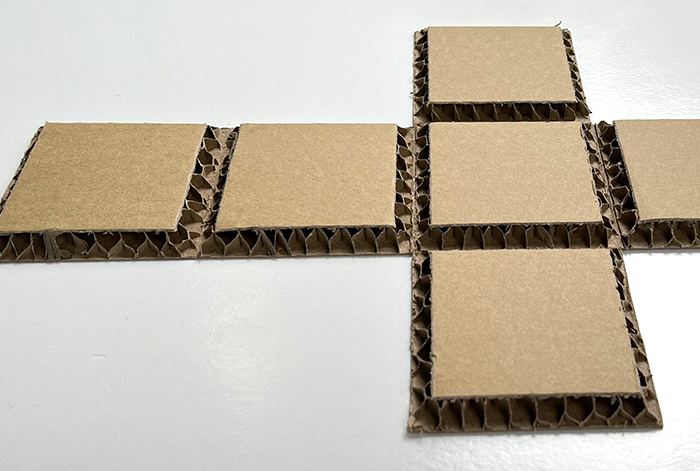

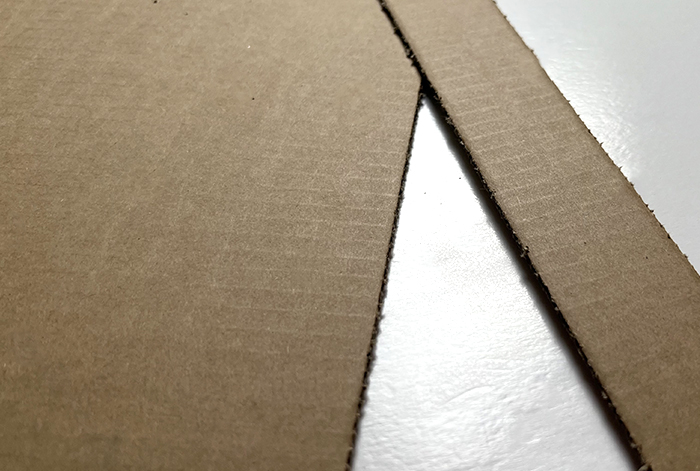

●It has functions such as milling, vibration full-cut/half-cut cutting, and drawing. It can not only easily cope with various flexible materials, such as corrugated paper, honeycomb board, cardboard, foam, gray board, KT board, Chevron board, etc., but also can cut and mill hard plastics, acrylic, PVC and other advertising display materials. It is widely used in the cutting, proofing and small-batch production of materials in the packaging, printing, advertising, display and other industries
●The self-developed control system runs faster and more stably. It meets user needs with excellent cutting speed and greatly reduces the failure rate and maintenance rate of the product. It can adapt to 24-hour uninterrupted work for 7 days and truly realize unattended operation
●The built-in cavity of the fuselage accessories meets the overall planning of the equipment and is neat and generous. It not only meets the 5s and 6s requirements of the factory, but also saves space and reduces noise
●Integrated zoned suction, automatically turns on the suction function in the working area, disables the non-working area, and achieves the maximum suction effect with the least amount of electricity
●L-shaped double linear guide design, more stable transmission and higher cutting accuracy
●High-definition CCD positioning camera, automatic and accurate edge cutting for different materials. Solve the problems of manual cutting, printer printing deformation and poor cutting effect
●Intelligent layered adsorption makes paging simpler and achieves zero error in single paper feeding
●One-click recognition of QR code can achieve mixed cutting of multiple papers
●Automatic knife setting function, realizes no manual intervention and accurately controls the depth of knife drop
| Model |
MBC-1310 |
MBC-1815 |
MBC-2516 |
| Effective working range |
1300*1000mm |
1800*1500mm |
2500*1600mm |
| Overall size |
2700*1985*1350mm |
3200*2485*1350mm |
3900*2585*1350mm |
| Air pump power |
5.5KW |
7.5KW |
7.5KW |
| Overall size |
2700*1985*1350mm |
3200*2485*1350mm |
3900*2585*1350mm |
| Cutting materials |

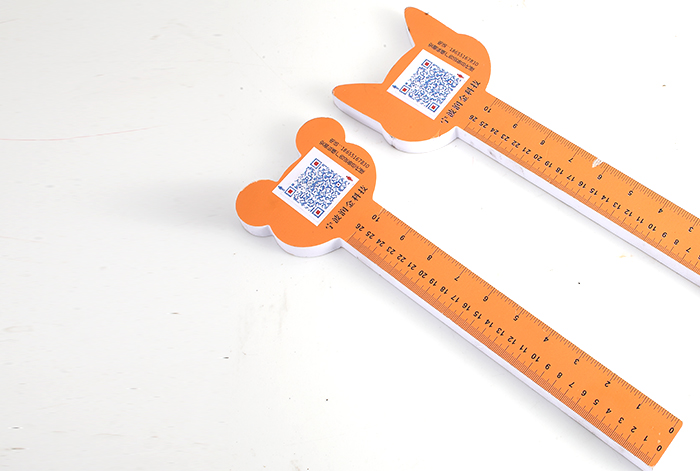

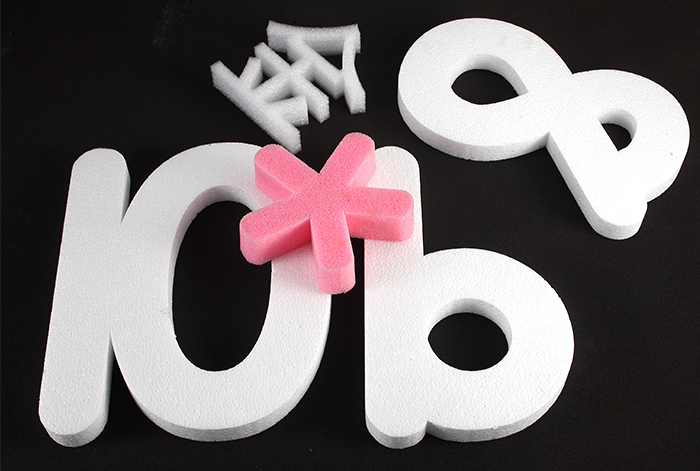

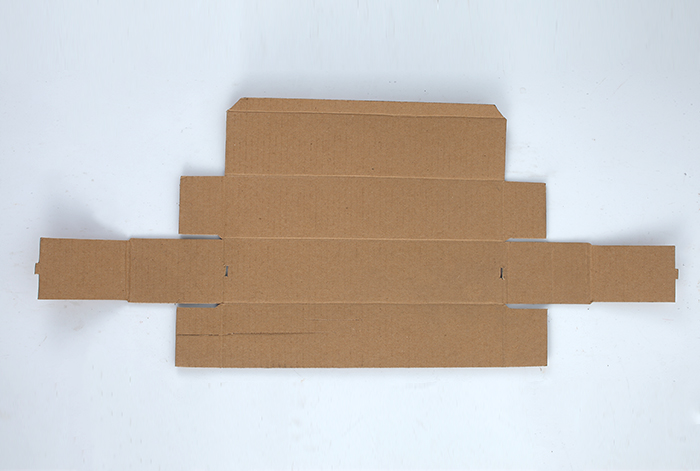

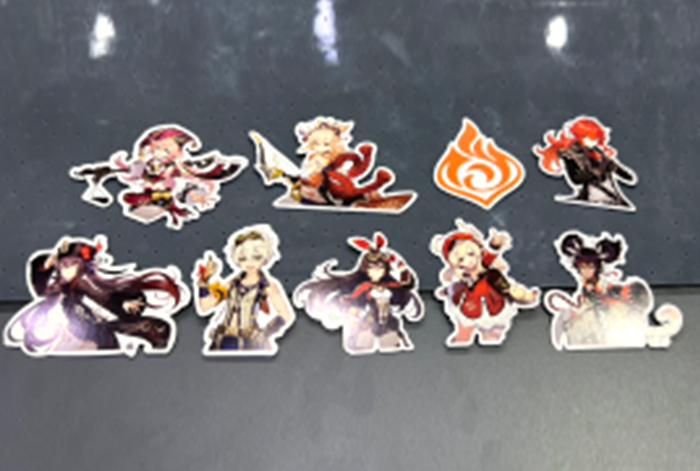

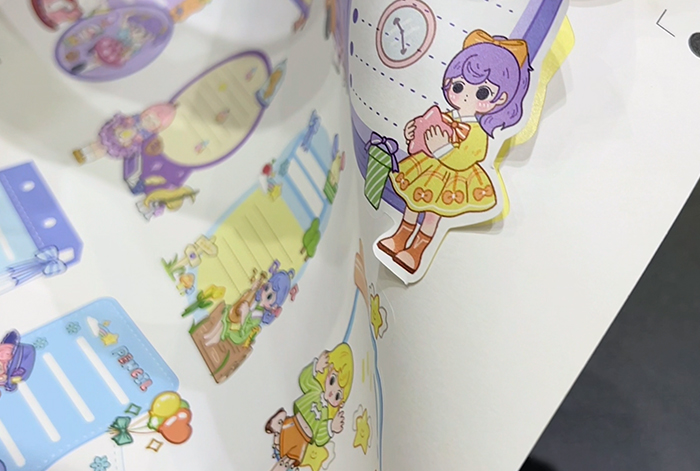

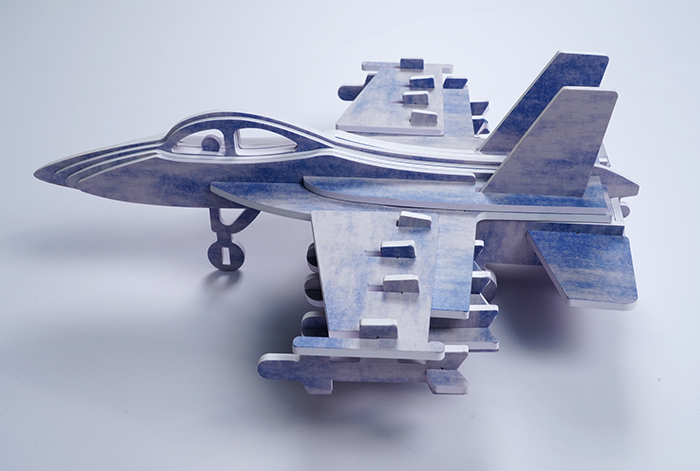

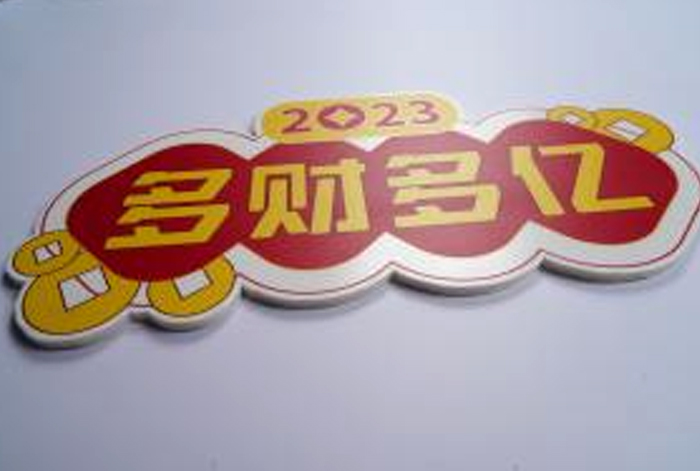

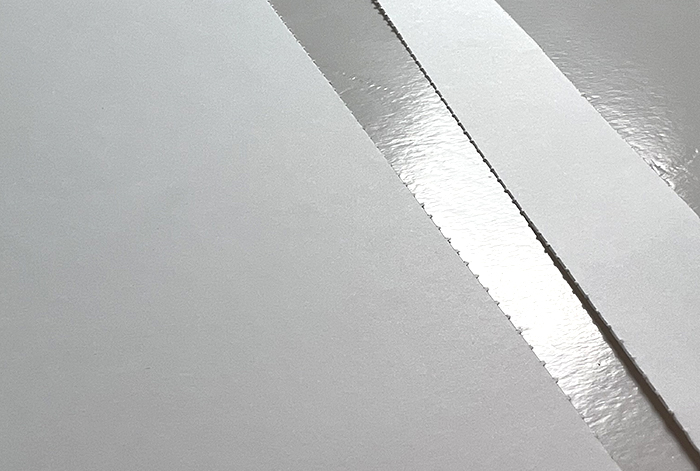

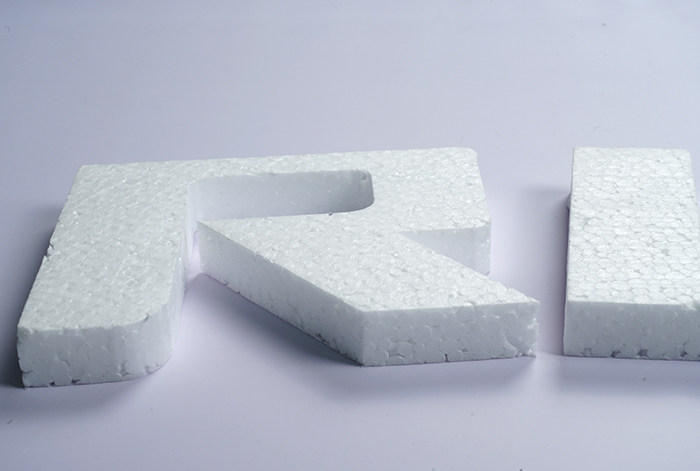

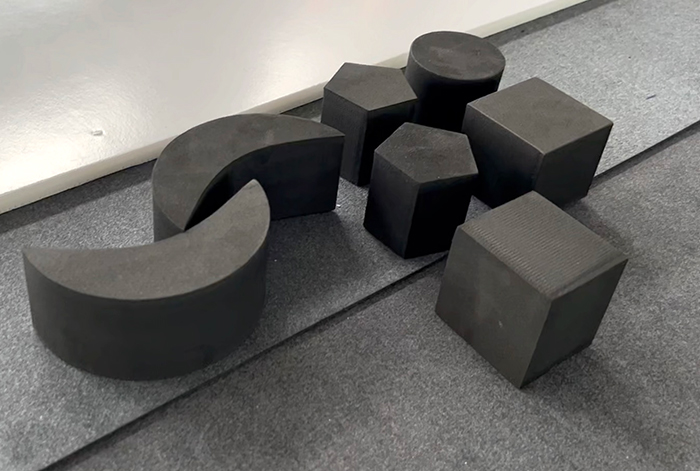

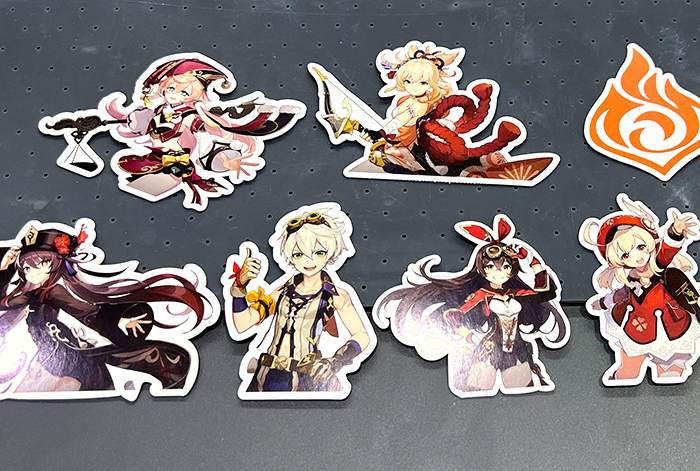

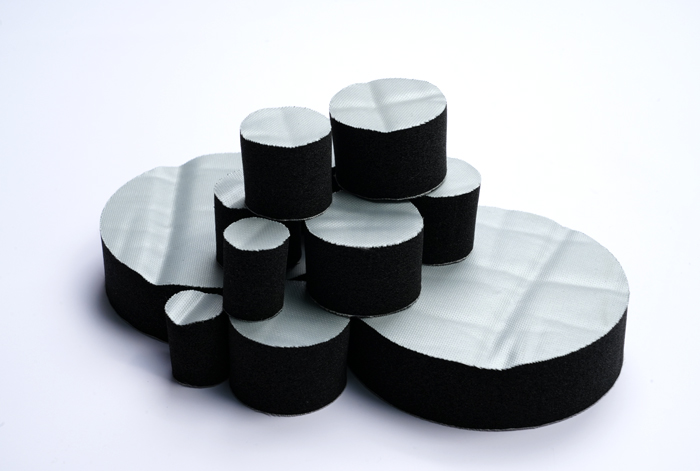

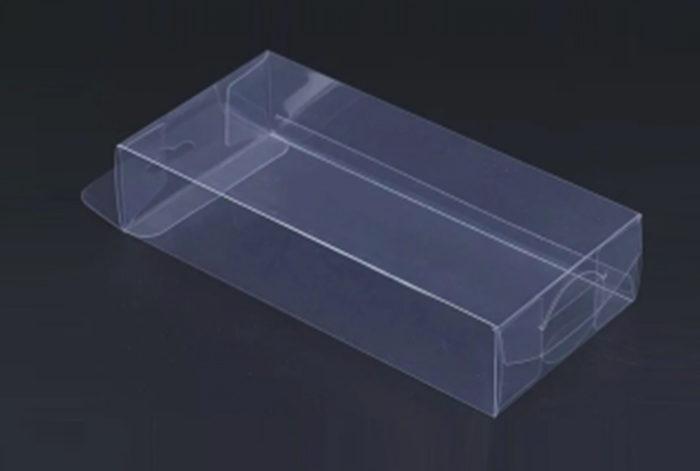

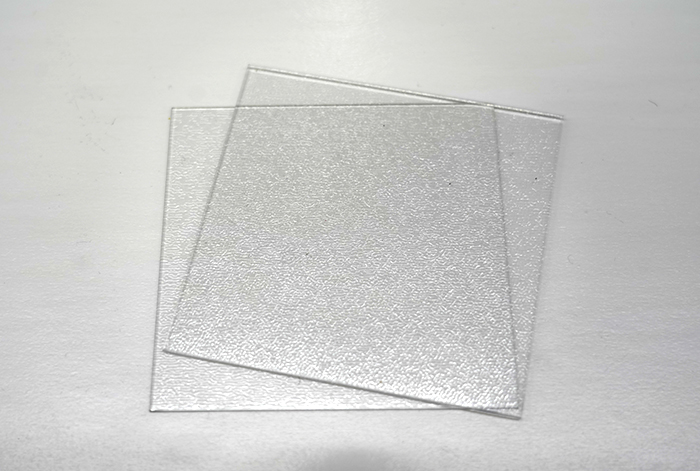

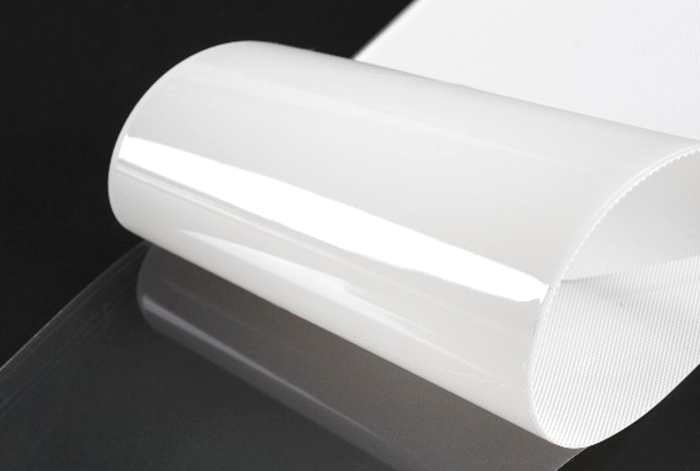

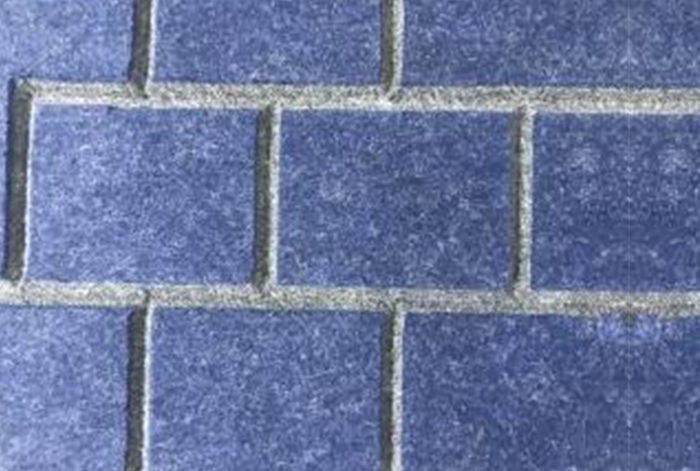

All kinds of corrugated cardboard, plastic corrugated board, yellow thick cardboard, red cardboard, white cardboard, gray cardboard, PVC board, foam board, EVA board, KT board, stickers, gaskets, etc. |
|
| Working Characteristics |
Can be connected to any CAD software,computer-aided design, and cutting at the same time |
| Standard tools |

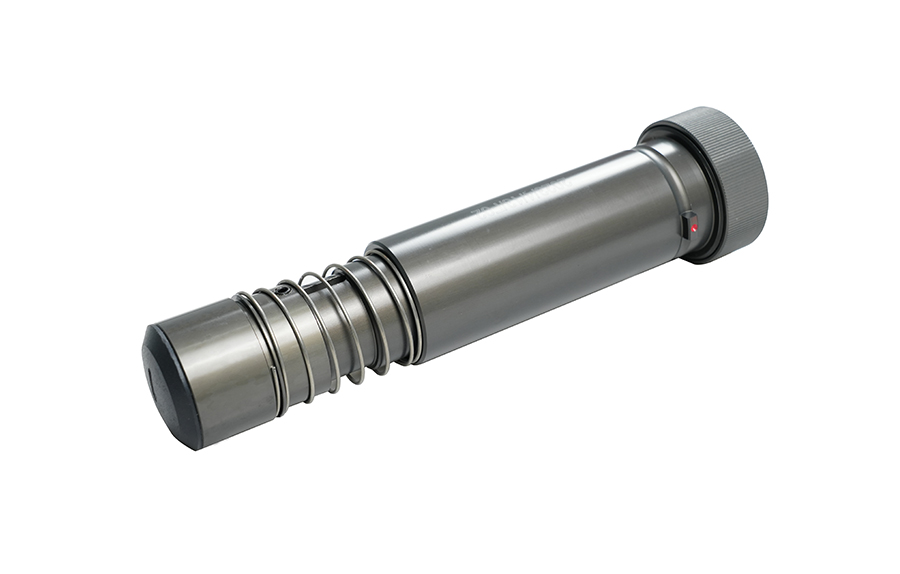

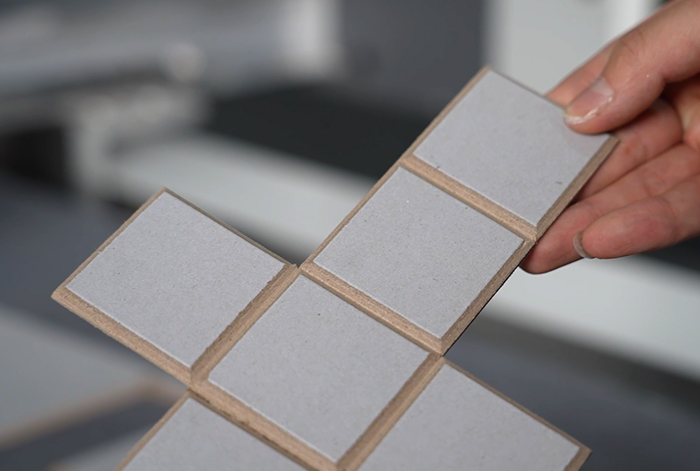

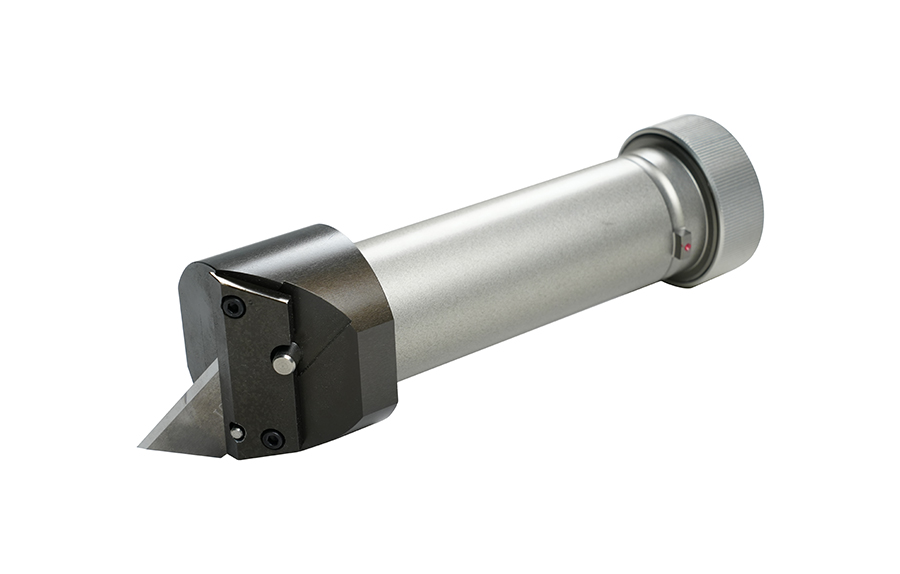

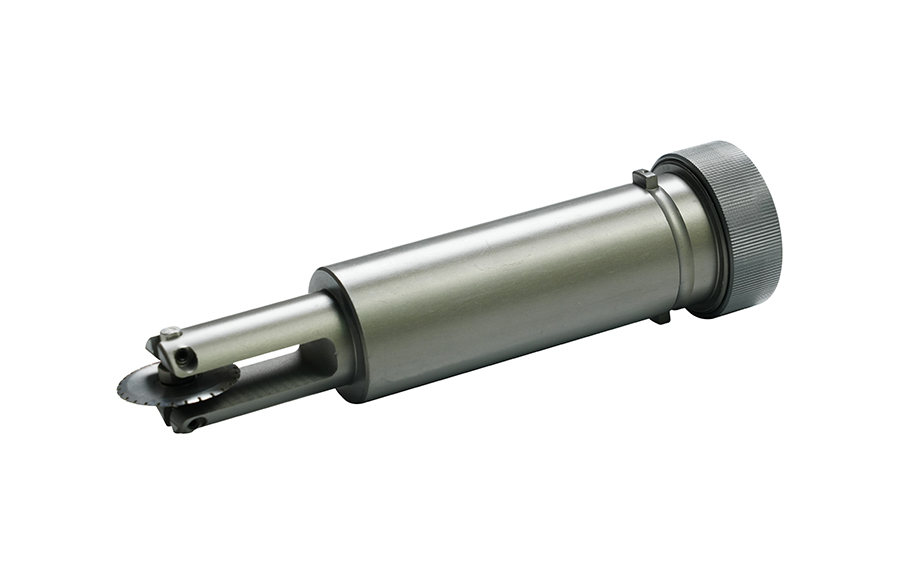

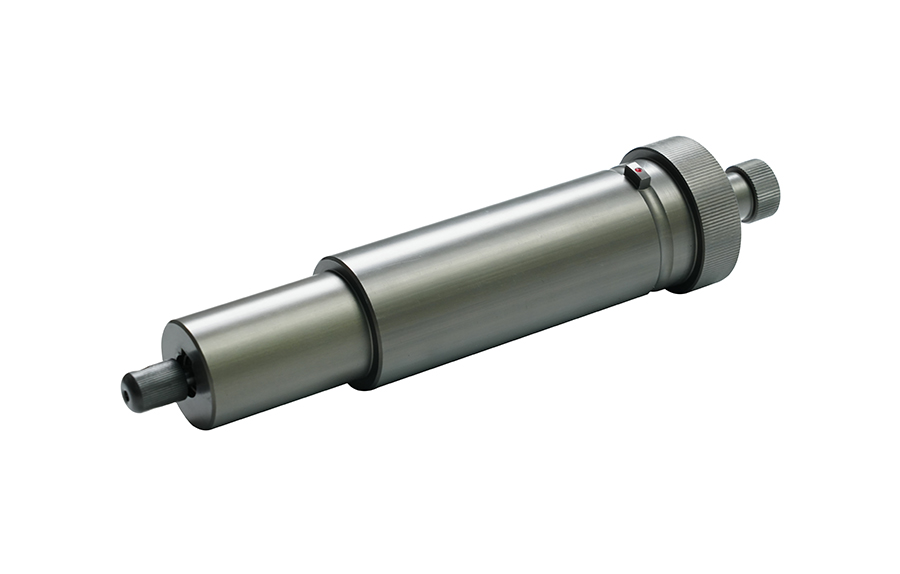

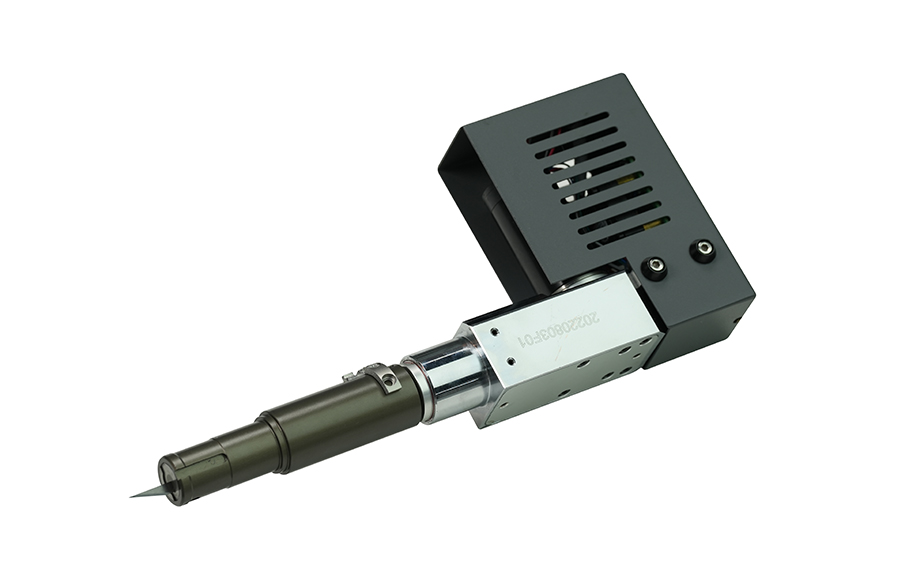

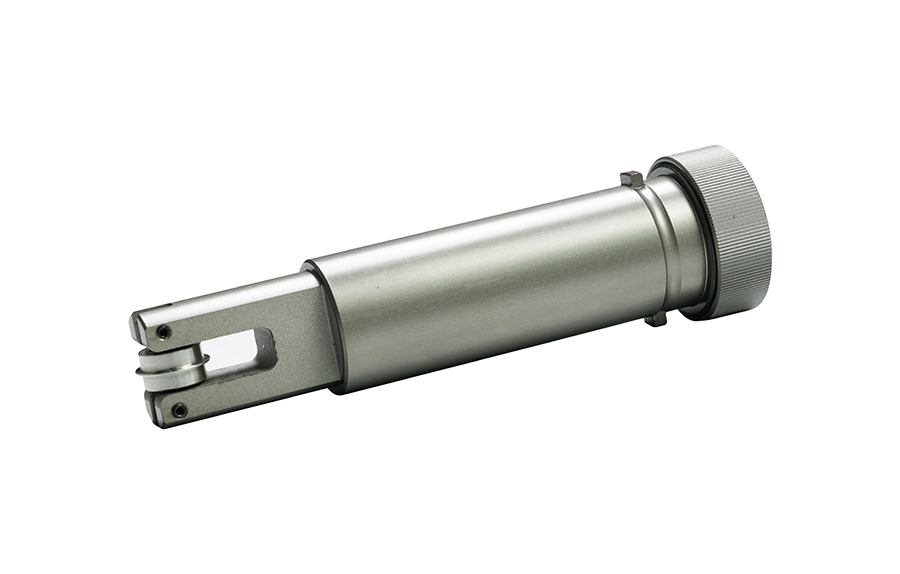

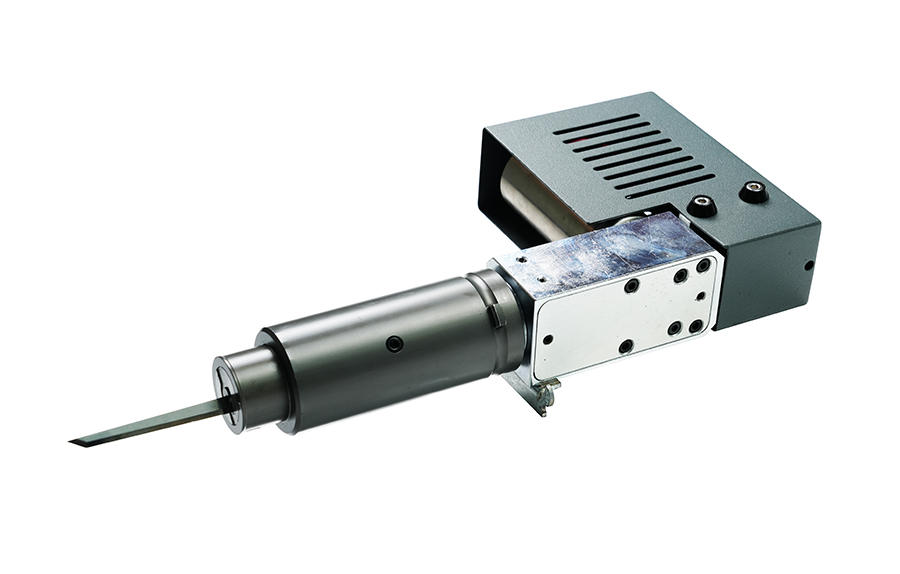

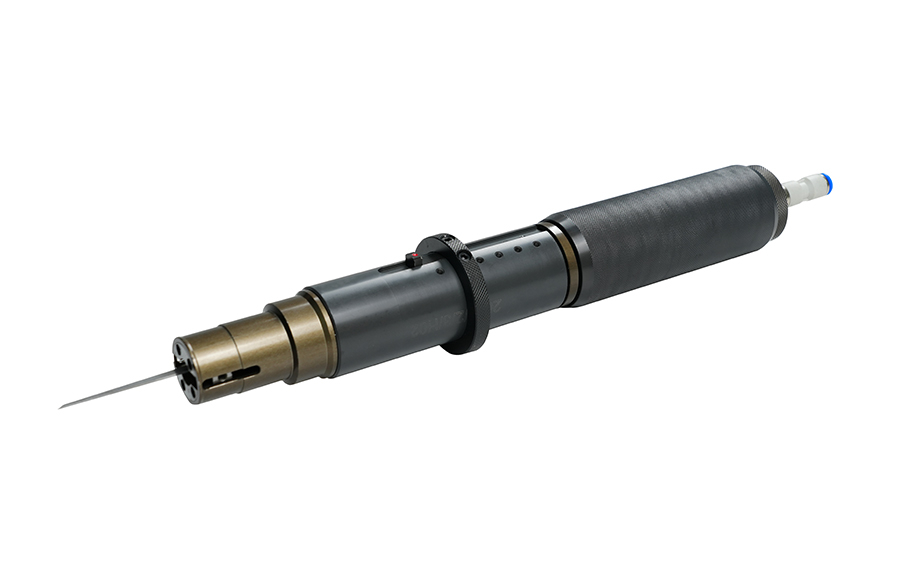

Oscillating tool, Creasing wheel, Pen, Double cross cursor, Gray card V-cut tool, Universal cutting tool |
| Optional tools |

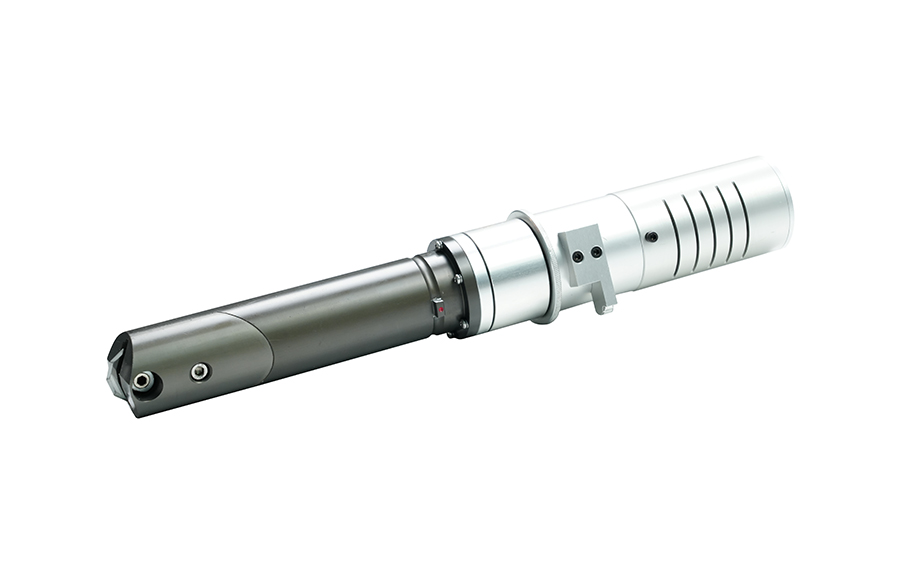

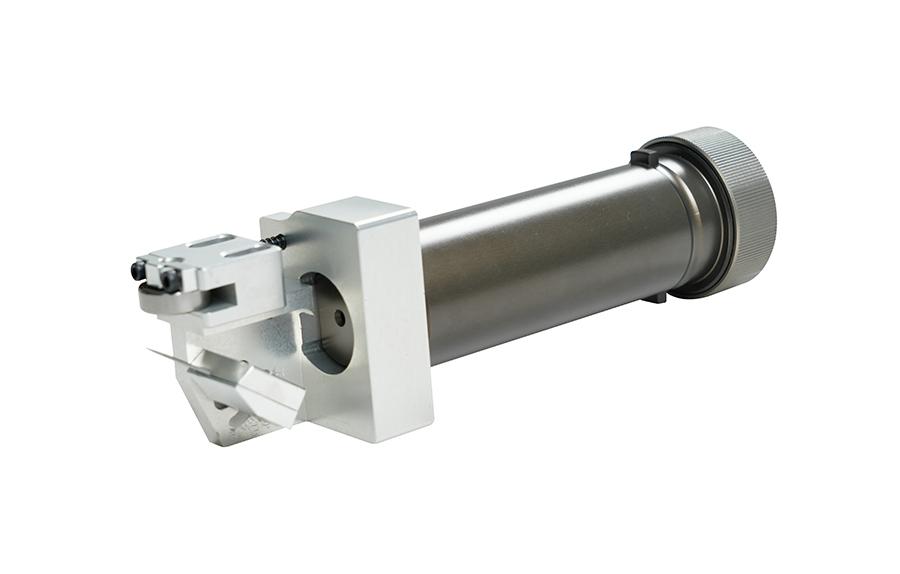

V-CUT tool, Milling tool, White card V-cut tool, CCD |
| Cutting thickness |
50MM (according to different cutting materials) |
| Speed |
1000mm/s |
| Fixing method |
Vacuum adsorption |
| Repeat accuracy |
≤0.01mm |
| Software resolution |
0.025、0.01、0.1 |
| Transmission port |
Standard network port |
| Software resolution |
1G, one-time fast transfer of page changeable cuts |
| Software resolution |
7-inch color touch screen |
| Software resolution |
High-end digital servo motor drive, linear guide |
| Software resolution |
AC380V±10%, 50HZ |
*The company reserves the right of final interpretation of the above parameters,subject to change without notice.

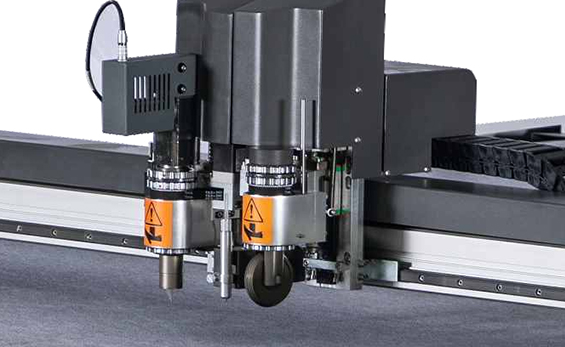

| Two groups of heads can be replaced, up to 8 groups of heads can be installed. |
 |
 |

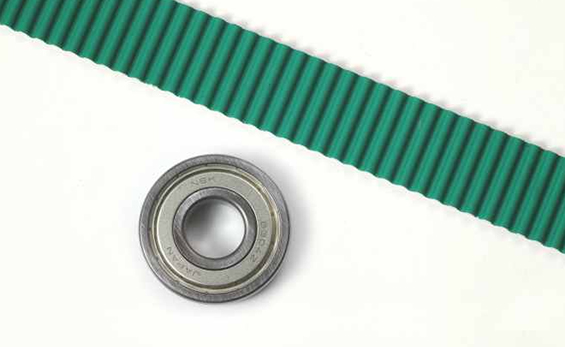

Import bearing and synchronous belt
|

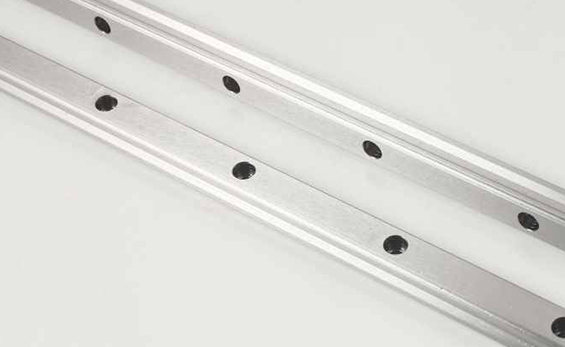

90° double Inear guide rail design, more stable transmission, higher accuracy
|
 |
 |

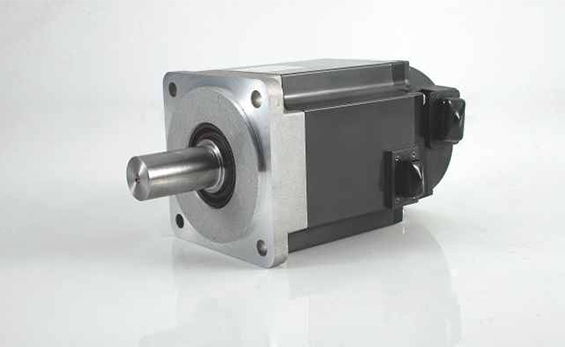

High-end motor not only provides the performance of the machine (more than 30%) but also improves the safety.
Ensure more accurate cutting precision, faster and smoother running speed.
|
Applied in corrugated boxes, cartons, color boxes, gift boxes, recycling packaging and other products proofing and small batch production.
Control system
Equipped with the advanced multi-axis high-speed motion control system with indepenent intellectual property rights, the system upgrade and maintenance are not controlled by the third party, the late maintenance is convenient, high reliability, low cost, because the right of control is in hand, it can be convenient for users to customize special procedures forpersonalized needs and remote upgrade;
Head design
The use of changeable tool head mode, tool head is not fixed welding integration, can be based on the actual work needs and business scope expansion of convenient replacement, with different functions of the tool head;
Safety protection
The beam working area is equipped with 360 degrees of safety anti-colli- sion and infrared blocking technology to ensure the safety of users.
Intelligent cutting machine- Special for the packaging industry
Mold-free, small batch, personalized customization

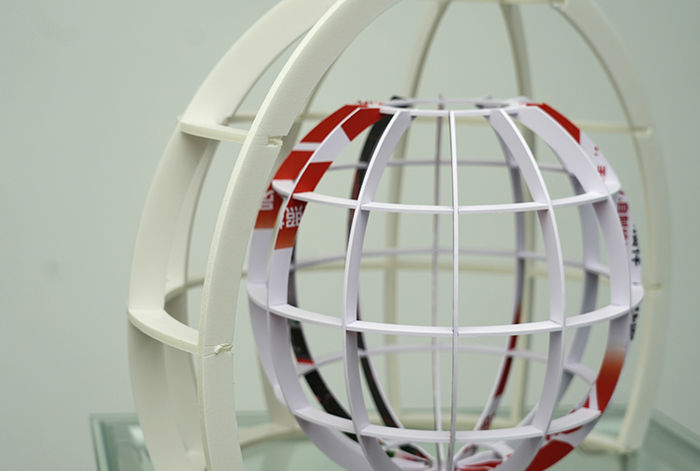

Widely applicable materials: corrugated paper, honeycomb board, cardboard, foam, gray board, KT board, Chevron board, etc.;
